ON 100

Commercial Kitchen Filtration

Purified Air use patented technology to scientifically treat cooking odours emitted by commercial kitchen and restaurant exhausts.
Minimal maintenance
Easily retro-fit
to existing system
Energy efficient
No airflow resistance
TRIED & Tested

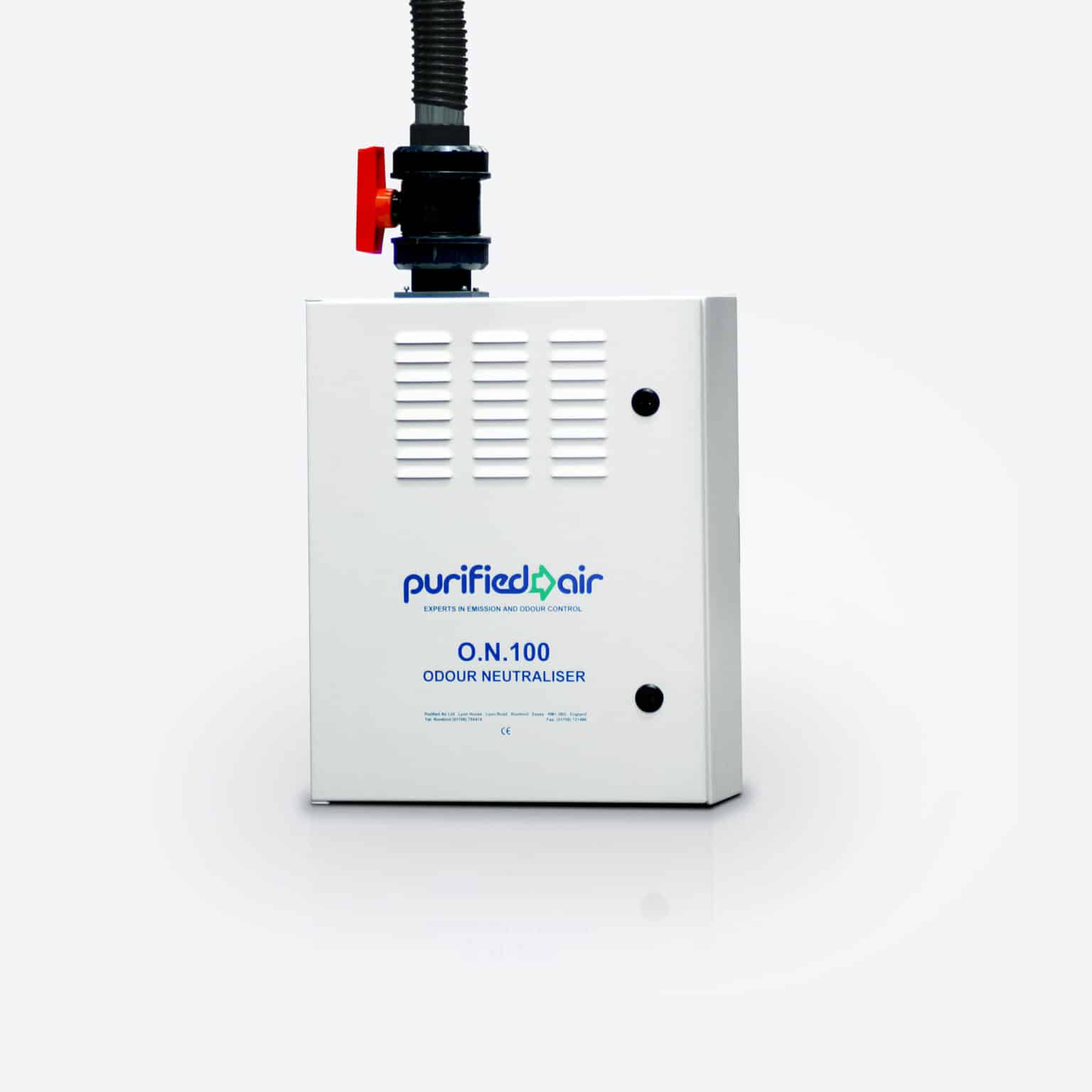

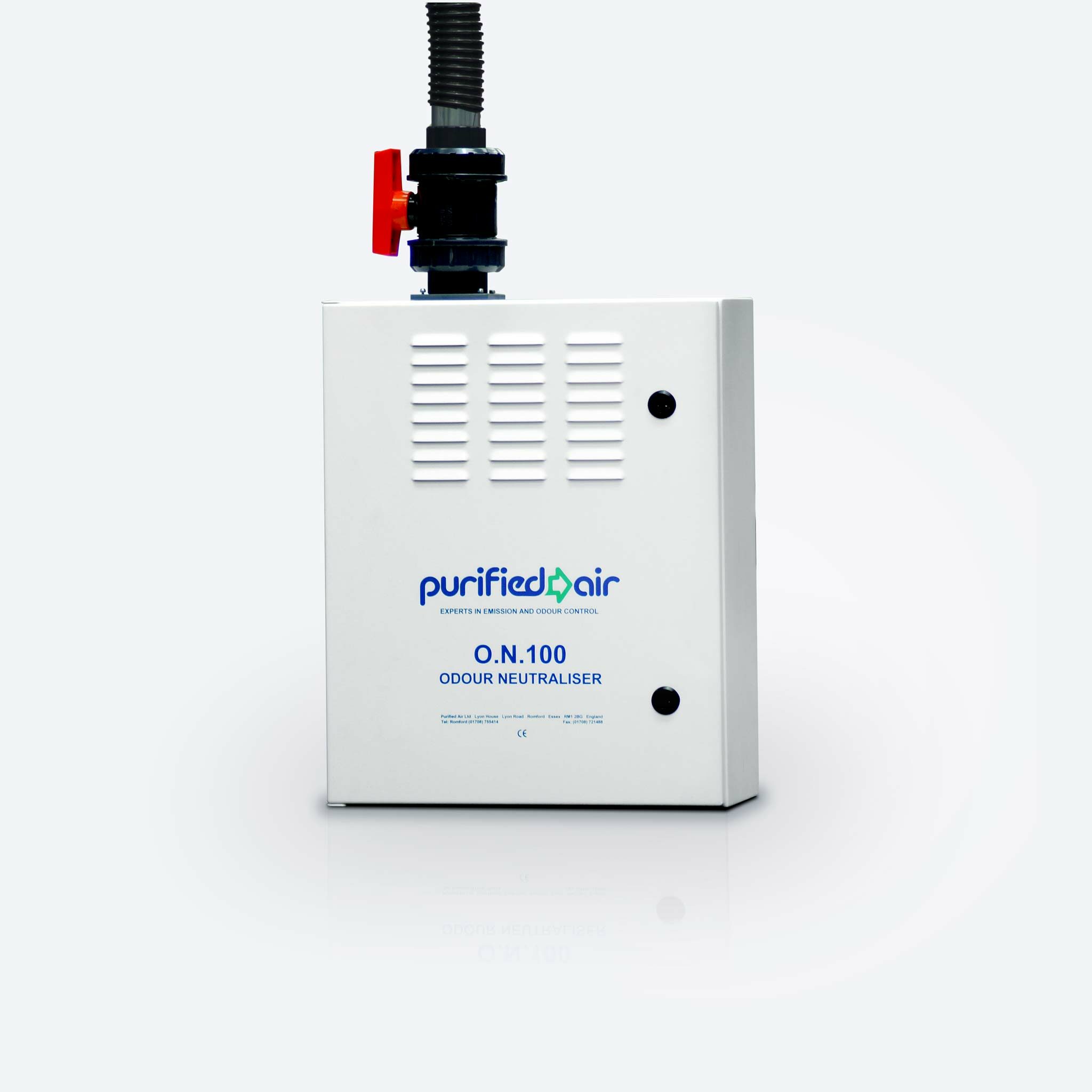

Once the airstream in the exhaust duct has had the majority of the particulates removed by one of our ESP units the gaseous phase or malodour can then be treated by the ON 100. The vapour from a specially blended neutralising agent, ELIMINODOR®, is mixed with ambient air drawn into the ON100 and ionised to a negative potential of 15,000 volts.

This ionised vapour then passes along a nonconductive tube to be discharged into the centre of the duct via a venturi spigot, the metal ducting is earthed through the same high tension circuit which makes the contaminant at an opposite potential to the negatively charged ELIMINODOR® vapour.

The benefits of ON100
Reduces odours up to 75%
Easy to retro-fit
Energy efficient
Low pressure loss

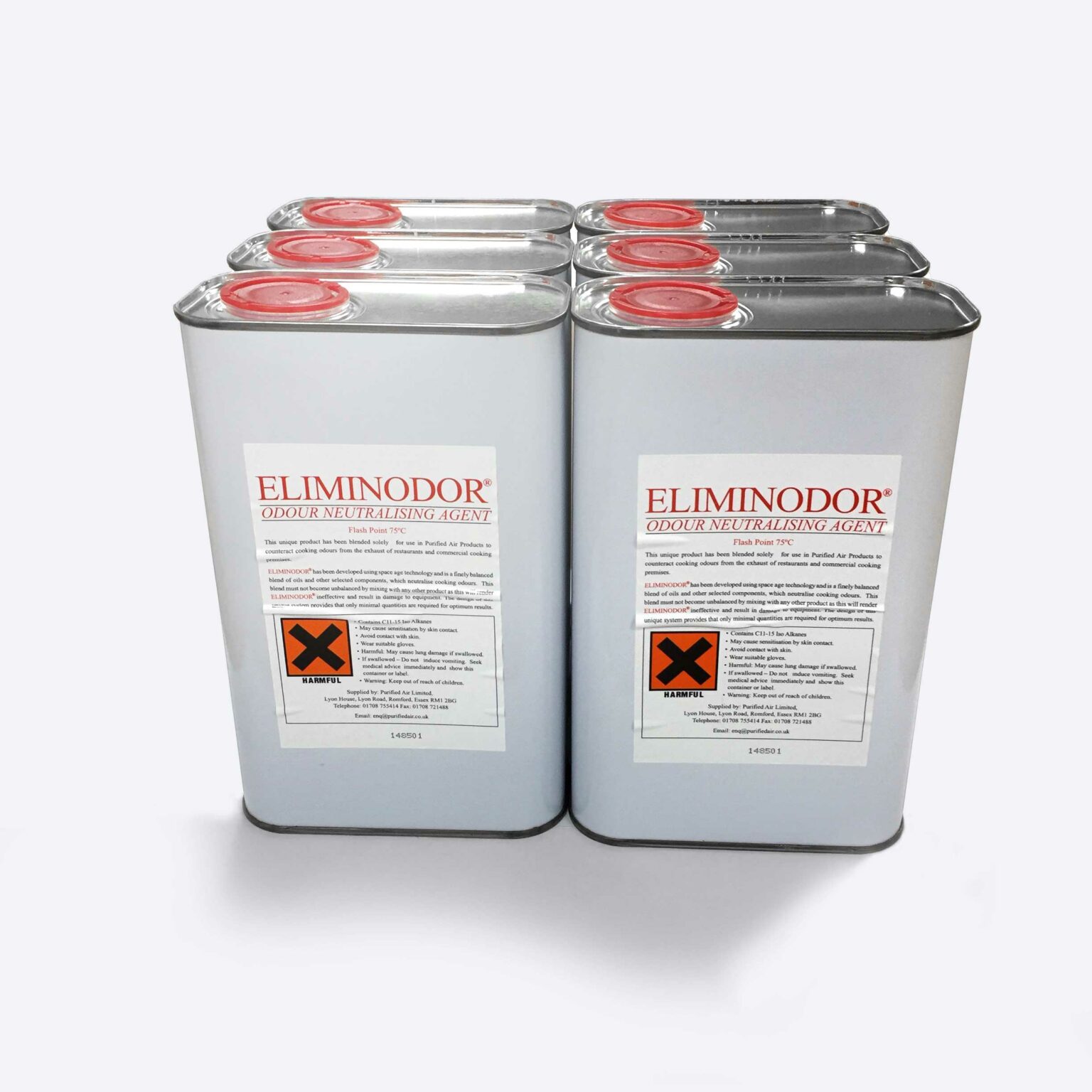

ELIMINODOR®

This product has been specifically developed and blended for use in Purified Air’s ON100 unit.

ELIMINODOR® is a finely balanced blend of essential oils and other chemicals which neutralise odorous gases found in the exhausts of commercial kitchens and restaurants. Purified Air have designed this unique system to ensure that only minimal quantities of ELIMINODOR® are required for optimum results.

Technical specification

ON 100

Max Air Volume

up to 4.16m3/sec

Dimensions

W400mm | H500mm | D250mm

Weight

12.25KG (Approx)

Power

40W

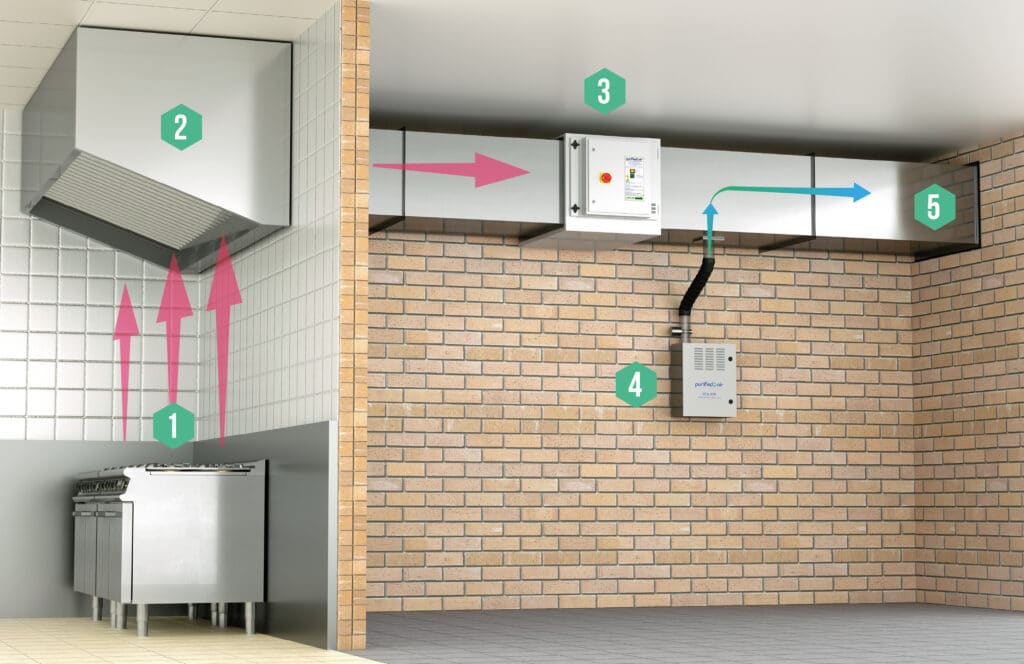

How it works

The vapour from a specially blended neutralising agent, ELIMINODOR®, is mixed with ambient air drawn into the ON100 unit and removes the odours by chemical reaction.
  1. Cooking particulates
    and odours
  2. Canopy Grease Filter
  3. ESP – Particulate
    Control Unit
  4. ON 100
  5. Eliminodor breaks down odours

Technology
used by

Our commercial air filtration systems have been installed in the kitchens of some of the world’s most prestigious brands.
